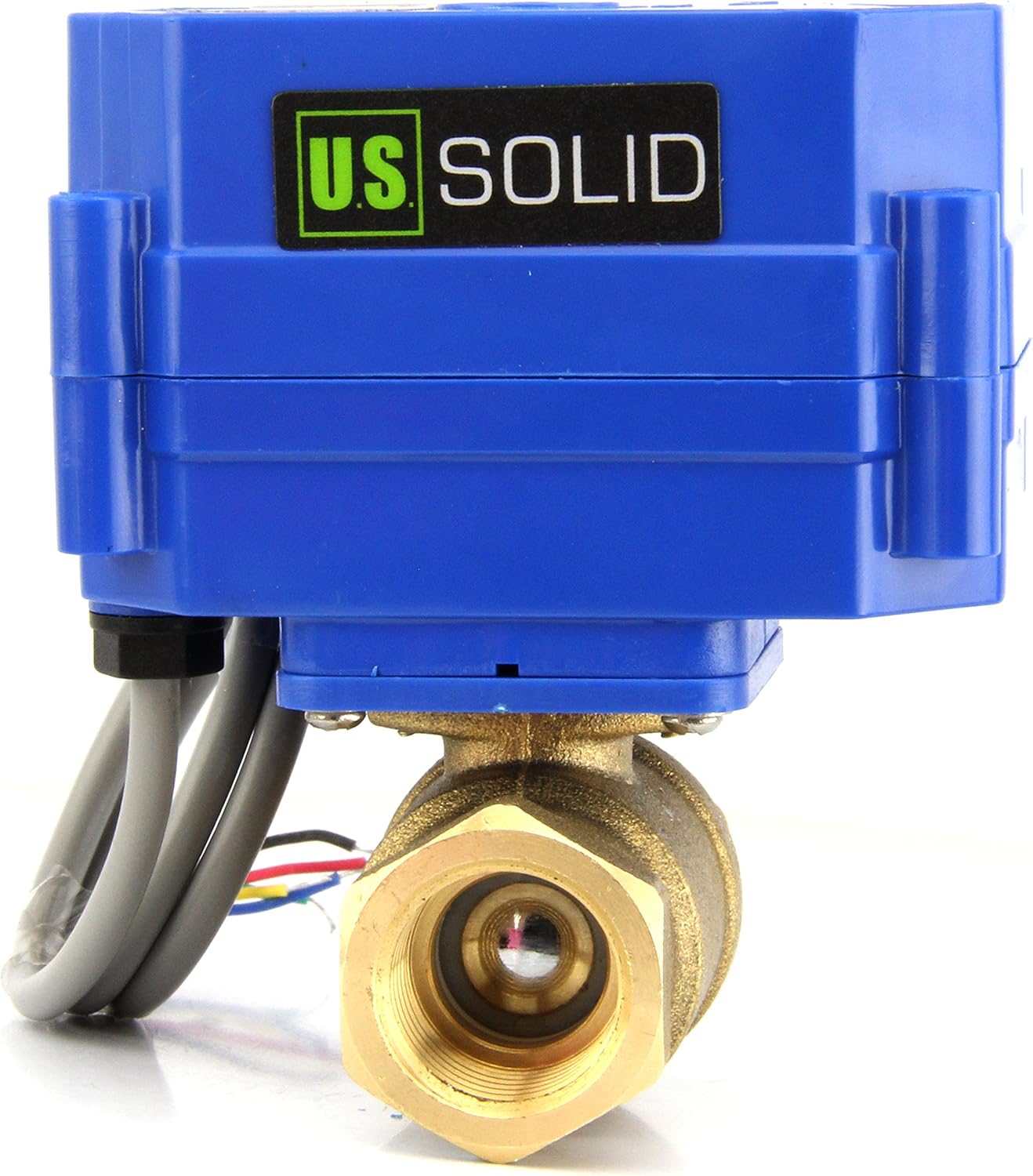

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid

Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid
  • Motorized Ball Valve- 1/2" Stainless Steel Electrical Ball Valve with Full Port, 9-24V DC and 5 Wire Setup, can be used with Indicator Lights, [Indicate Open or Closed Position] by U.S. Solid

4.4

(75)

مشاهده در آمازون آمریکا

به ازای خرید این محصول 18 امتیاز از باشگاه مشتریان ایگرد دریافت خواهید کرد.

خرید اقساطی

گزارش خرابی

تفکیک هزینه ها

قیمت/مبلغ ارزی:

786,300 تومان

هزینه حمل و گمرک:

851,600 تومان

کارمزد ایگرد:

165,200 تومان

  • ۲۸ تا ۴۸ روز کاری

  • ضمانت اصالت و سلامت کالا

  • ارسال رایگان در سراسر ایران

  • قیمت قطعی

  • Size:1/2 Inch  |  Color:Steel

  • This ½ stainless steel motorized ball valve is affordable enough for the home hobbyist, while durable enough for titans of industry. The valve body and stem are made of SS304 steel, which is lead free and safe for drinking water. It actuates using 9V to 24V of DC power, and will fully open or fully close in 6-8 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.

  • The attention to detail in this valve extends beyond the metal. The casing is rated as IP65. This ingress protection rating is used to define how well the casing does at sealing. For U.S. Solid motorized ball valves, they have the highest IP rating possible against solids (6), representing a seal that protects against all solids, even dust. For water, the rating (5) represents seal protection against water spray from all directions. This means the casing and body are all built to last.

  • Motorized ball valves have a variety of interesting and convenient uses. Many choose to use them in home water systems. They are also a great tool for use in home automation projects. Home brewery systems typically need several of these valves, and the SS304 is great for fermented liquids. Lastly, all of the U.S. Solid motorized ball valves work well with Arduino automation systems.

  • Specifications

  • Valve Material: SS304

  • Ball Seat: PTFE

  • Seal: EPDM

  • Close/Open Time: 3-5 Seconds

  • Working Voltage: 9-24V DC

  • Max Power: 5W

  • Max Torque: 6 N m

  • Max Pressure: 1.0Mpa

  • Temperature range for Flow Medium: 0°C to 100°C

  • Ambient Temperature Range: -5°C to 40°C

  • Enclosure Rating: IP65

  • Life Expectancy: 80,000-100,000 Cycles

  • Bore Type: Full

  • Thread Type: NPT

Package Dimensions4.25 x 3.58 x 3.39 inches
Date First AvailableMarch 1, 2017
Voltage12 Volts
ManufacturerU.S. Solid
Wattage5 watts
Size1/2 Inch
Part NumberUSS-MSV00013
MaterialStainless Steel
Item Weight1.28 pounds
ASINB06XCJZ9SD
Batteries Included?No
Batteries Required?No
Item Package Quantity1
ColorSteel
