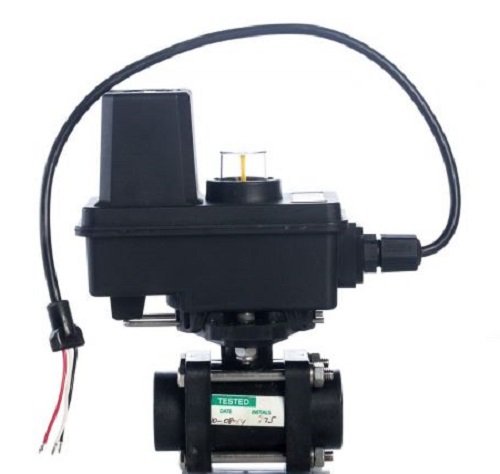

TeeJet 3/4" 12V 3 Way Electric Shutoff Valve (344BEC-33-C)

3/4 NPT Outlet Threads, 12 VDC 3-Way Valve, Polypropylene Ball, Positively Switched w/ 0.5-Meter Cable. DirectoValve 344 Series Electric Shutoff Valve from Spraying Systems/TeeJet. 344B shutoff ball valves are available with E or EC Series motors and with cable or DIN electrical connections. Features: -22RPM, 0.7 second shutoff fully open to close. -Flexible inlet/outlets provide quick simple plumbing for a single valve. -Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off. -Stainless steel stem with optional polypropylene or stainless steel ball. -Maximum pressure rating is 300 psi (20 bar). -The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop. -The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 psi (0.34 bar) pressure drop. -Wetted parts are nylon, Teflon, polypropylene, stainless steel and Viton.
