Uniquers Liquid Flow Meter Water Flow Hall Effect Sensor Switch Flowmeter Counter- Plastic 1/2" NPS Threaded

امتیاز 3
Uniquers Liquid Flow Meter Water Flow Hall Effect Sensor Switch Flowmeter Counter- Plastic 1/2" NPS Threaded
  • Uniquers Liquid Flow Meter Water Flow Hall Effect Sensor Switch Flowmeter Counter- Plastic 1/2" NPS Threaded
  • Uniquers Liquid Flow Meter Water Flow Hall Effect Sensor Switch Flowmeter Counter- Plastic 1/2" NPS Threaded
امتیاز 3

برند:

Uniquers

وزن: 270 گرم

قیمت دلاری: 10.99$

قیمت نهایی: 867,100 تومان

به ازای خرید این محصول 8 امتیاز از باشگاه مشتریان ایگرد دریافت خواهید کرد.

1

1

تفکیک هزینه ها

قیمت/مبلغ ارزی:

307,900 تومان

هزینه حمل و گمرک:

!

461,100 تومان

!

کارمزد ایگرد:

98,100 تومان

  • 35 تا 55 روز کاری

  • ضمانت اصالت و سلامت کالا

  • بیمه ۱۰۰ روزه ایگرد

  • ارسال رایگان در سراسر ایران

  • قیمت قطعی

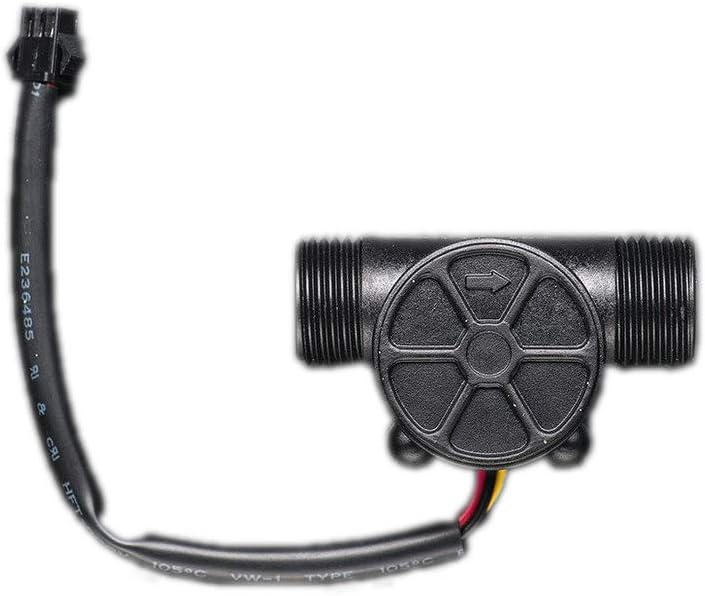

  • Measure liquid/water flow for your solar, computer cooling, or gardening project using this handy basic flow meter. This sensor sit in line with your water line, and uses a pinwheel sensor to measure how much liquid has moved through it. The pinwheel has a little magnet attached, and theres a hall effect magnetic sensor on the other side of the plastic tube that can measure how many spins the pinwheel has made through the plastic wall. This method allows the sensor to stay safe and dry.

  • The sensor comes with three wires: red (5-24VDC power), black (ground) and yellow (Hall effect pulse output). By counting the pulses from the output of the sensor, you can easily track fluid movement: each pulse is approximately 2.25 milliliters. Note this isnt a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure and sensor orientation. It will need careful calibration if better than 10% precision is required. However, its great for basic measurement tasks!

  • Electrical:

  • Working Voltage: 5 to 18VDC

  • Max current draw: 15mA @ 5V

  • Working Flow Rate: 1 to 30 Liters/Minute

  • Working Temperature range: -25 to 80°C

  • Working Humidity Range: 35%-80% RH

  • Maximum water pressure: 2.0 MPa

  • Output duty cycle: 50% +-10%

  • Output rise time: 0.04us

  • Output fall time: 0.18us

  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)

  • Pulses per Liter: 450

  • Durability: minimum 300,000 cycles

Package Dimensions4.8 x 3.5 x 0.2 inches
وزن محصول1.58 ounces
Is Discontinued By ManufacturerNo
ManufacturerGeneric
ASINB075VLZVDM
