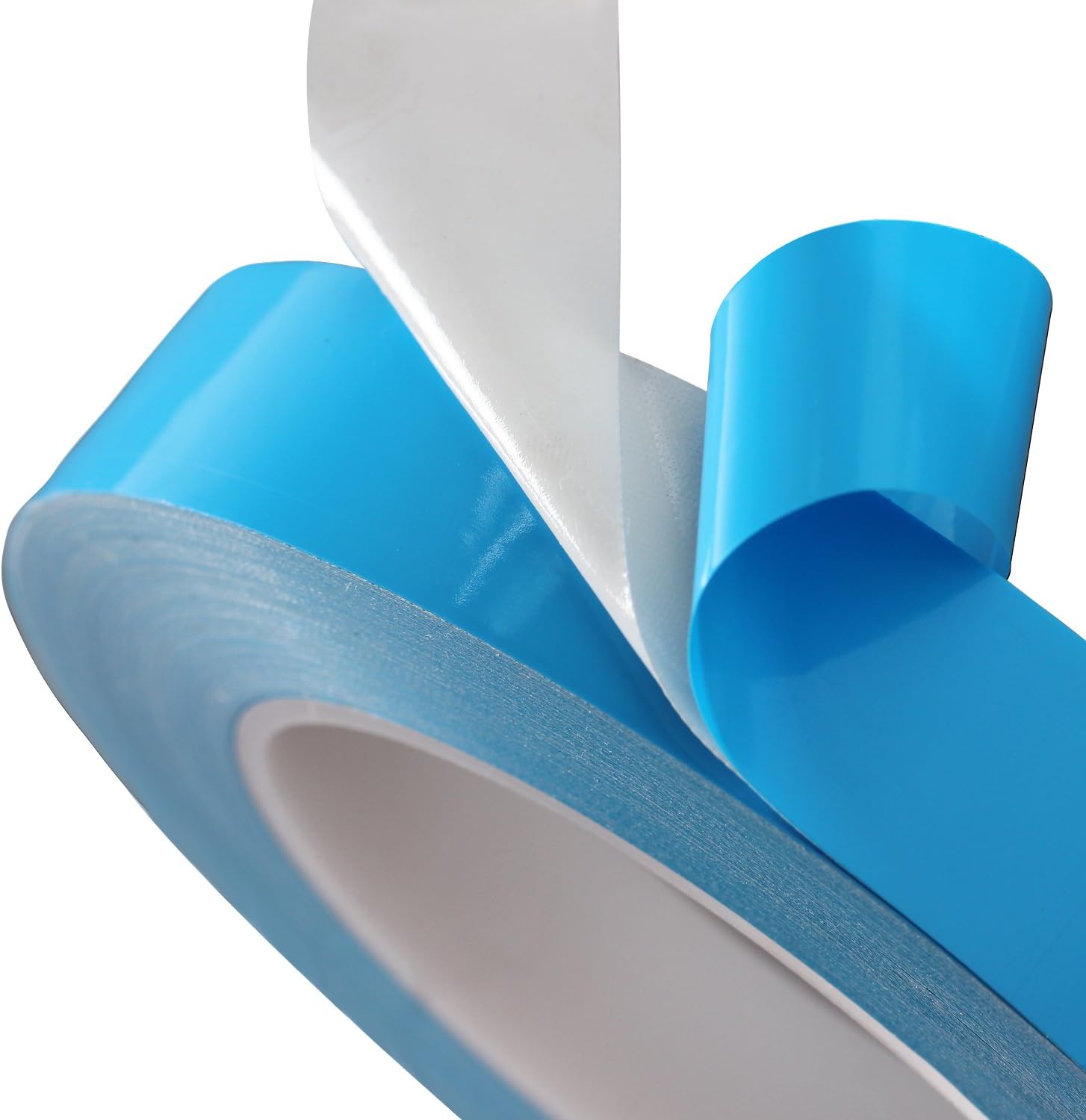

Thermal Adhesive Tape 20mm by 25M, HPFIX High Performance Thermally Conductive Tape Apply for Coolers, Heat Sink, LED Strips, Computer CPU, GPU, Easy to Apply & High Durability
4.5
(223)
برند:
وزن:
270 گرم
قیمت دلاری:
$12.99
قیمت نهایی:
823,300 تومان
به ازای خرید این محصول 8 امتیاز از باشگاه مشتریان ایگرد دریافت خواهید کرد.
تفکیک هزینه ها
قیمت/مبلغ ارزی:
329,200 تومان
هزینه حمل و گمرک:
422,700 تومان
کارمزد ایگرد:
71,400 تومان
۲۸ تا ۴۸ روز کاری
ضمانت اصالت و سلامت کالا
ارسال رایگان در سراسر ایران
قیمت قطعی

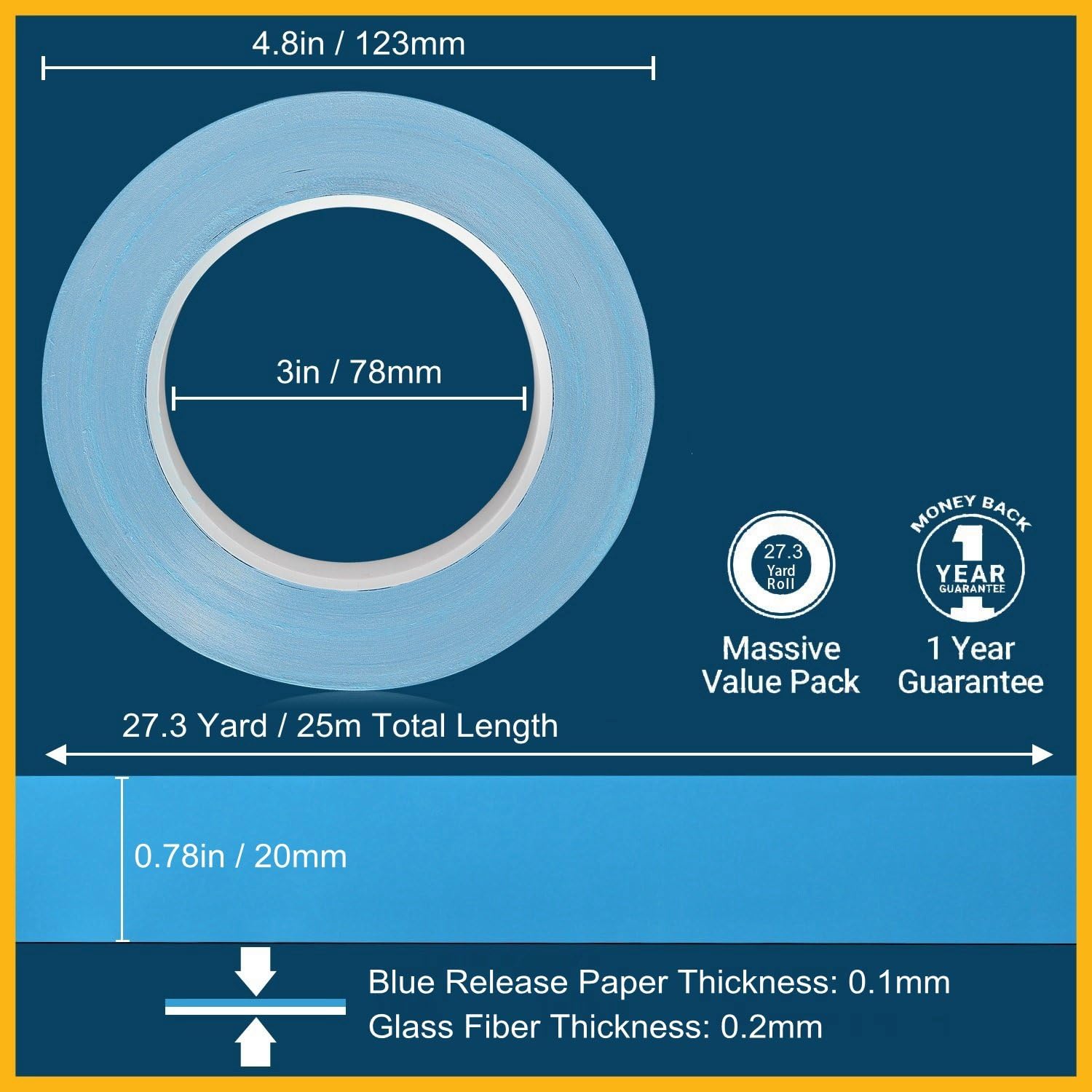

Size:20mm x 25m
Specification:
Dimension: 20mm x 25m
Thickness: 0.2mm
Reinforcement Carrier : Fiberglass Mesh
Thermal Conductivity:1.5 W/m-k
Breakdown Voltage: 4KVAC
Thermal impedance : 0.3℃in2/w
Initial Adhesion: 1.3kg/inch
180°Adhesion power: )16 N/25mm
Heat Resistance: 120°C (long time), 180°C ( short time)
Applicable temperature range:-30~+120 °C
Application:
Electronics Components: IC、CPU 、MOS .......
LED、M/B、P/S 、Heat Sink 、LCD -TV 、Notebook PC 、PC、Telecom Device、Wireless Hub
DDR Module 、 DVD Applications 、 Hand-set Application
Features:
★ Good adhesion (Acrylic PSA)
★ Very good thermal conductivity
★ Soft and compressibility
★ Easy to assemble
★ Long lifetime working normal temperature(80-120℃ ) can work for a minimum of 5 years
Notes For Attention:
1.When using thermal conductive double-sided tape, keep the adhesive surface clean and dry.
2.After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength).
3.The viscosity of the heat-conductive double-sided adhesive tape have initial viscosity and persistent viscosity, and at room temperature, it takes 72 hours
to achieve the maximum adhesive strength. That is, at the beginning of the sticky adhesive that is the initial viscosity to 40% of its maximum viscosity, persistent stickiness is stable over time.
4.In the paste process, the appropriate heating (60 ~ 70 ℃), will greatly contribute to the effective increase in the area of adhesive, and as soon as possible to achieve maximum adhesion.
In the lower temperature of the winter, its little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape.
Package included:
1 Roll Thermal Conductive Double-sided Tape
| ASIN | B06ZY1JNJV |
| Item model number | HF-001 |
| Manufacturer | U.S CAYEDA DIRECT |
| Item Weight | 5.6 ounces |
| Date First Available | December 2, 2018 |
| Product Dimensions | 4.8 x 4.8 x 0.78 inches |
| Is Discontinued By Manufacturer | No |
